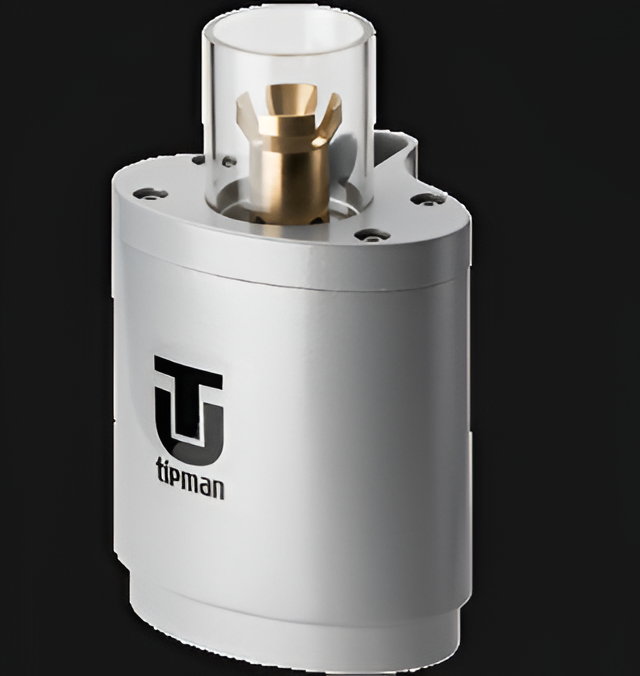

NCOP-SP03

Lorem a dummy or placeholder text commonly used in graphic design, publishing, and web development. Its purpose is to permit a page layout to be designed.

Explore Now
NCOP-SP03
CDK-SG
CDK-R

Our Products

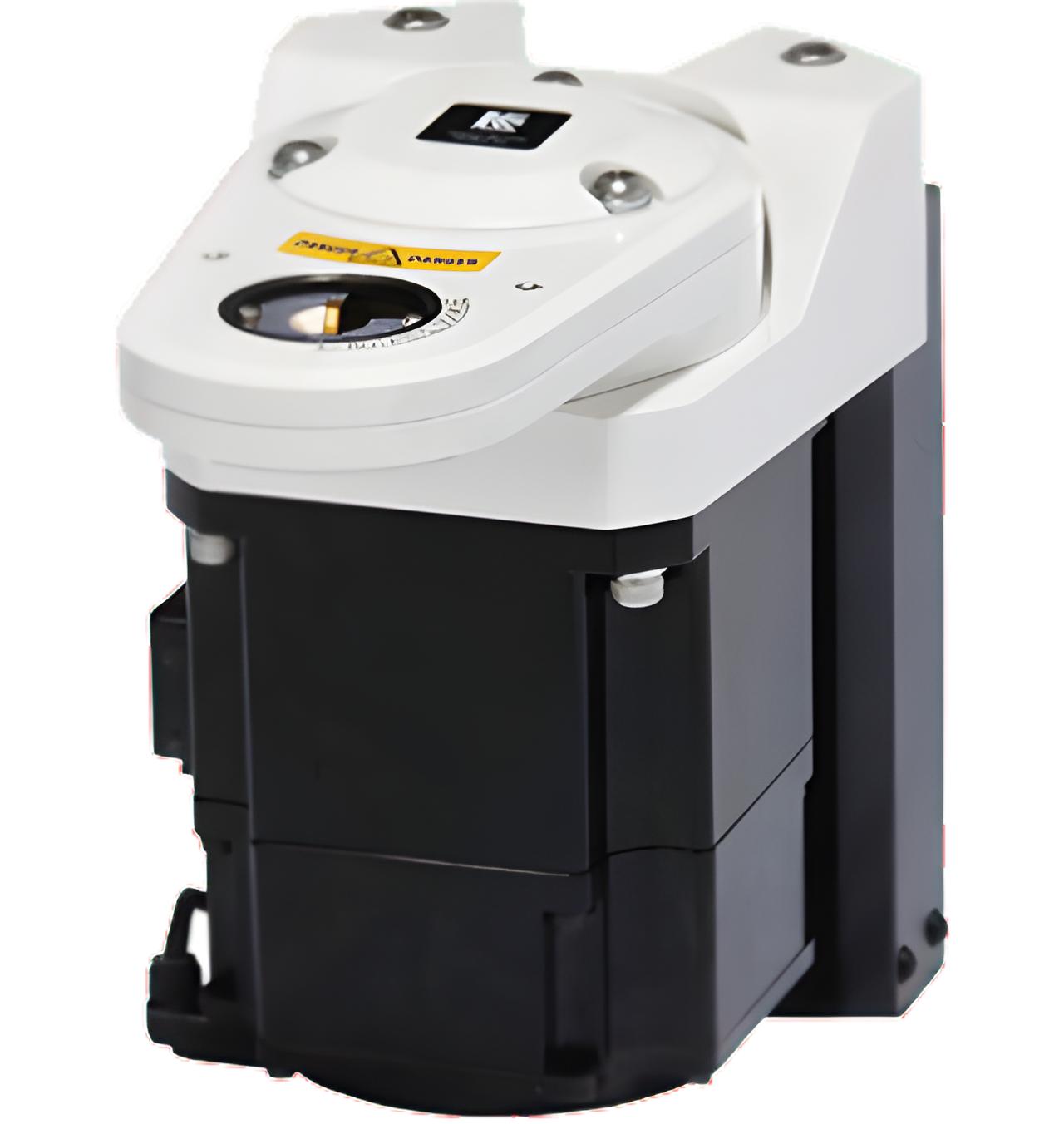

  • CD-SVR

    CD-SVR

    1. Adopt one touch holder which does not require any tool.
    2. The Function of the servomotor allows the control of the revolution frequency and the detection of the electric current.
    3. Multi-functional gearbox for accepting any maker’s servomotor.

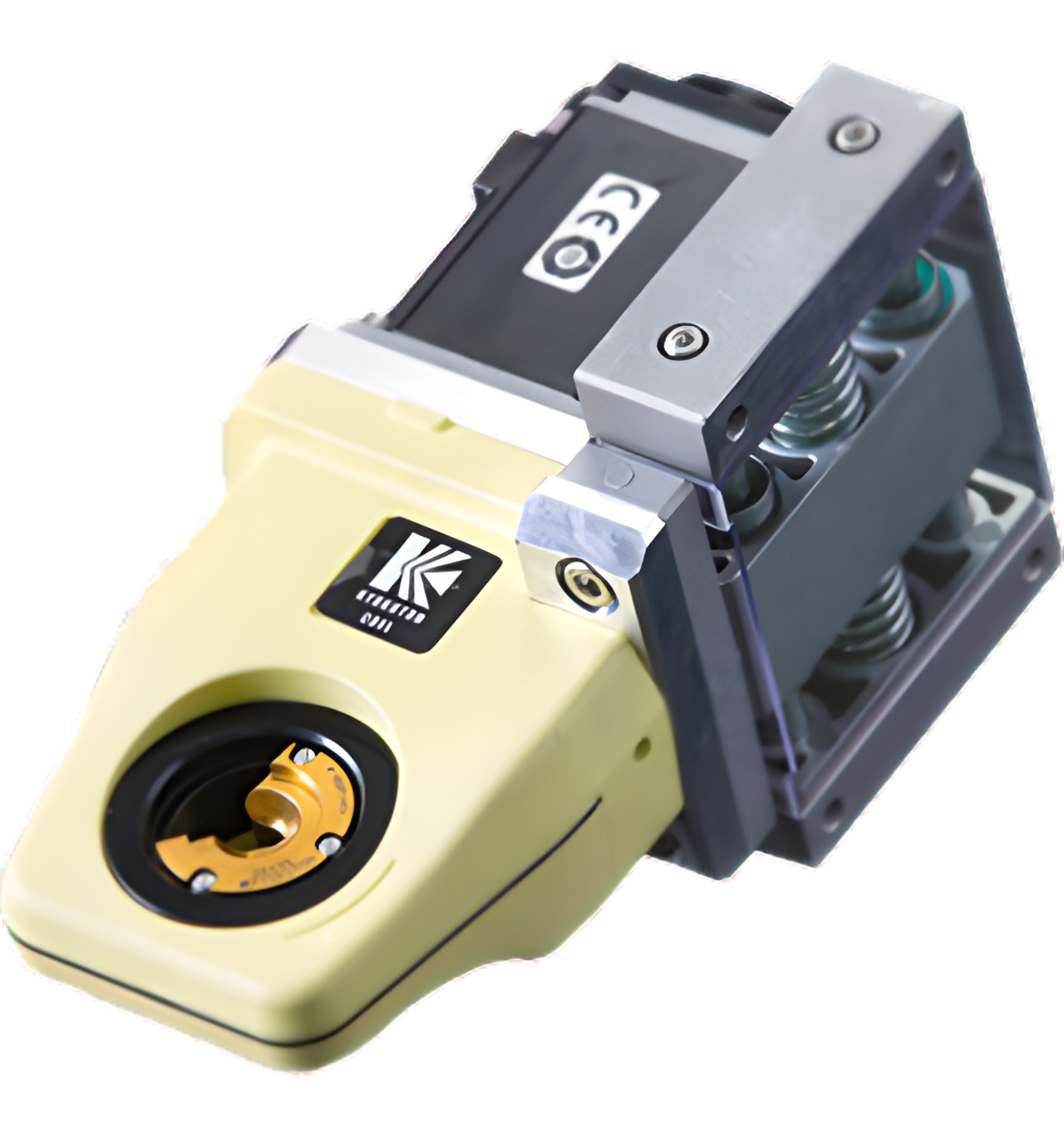

  • CDEL

    CDEL

    1. 1/3 the size of an existing dresser, Weight 5.8kg.
    2. Can be controlled by either a robot axis or an external axis (Corresponds to any robot makers).
    3. New floating unit designed to fit in any way.
    4. Small and thin gear head.
    5. Adopt one touch holder which does not require any tool(Option).

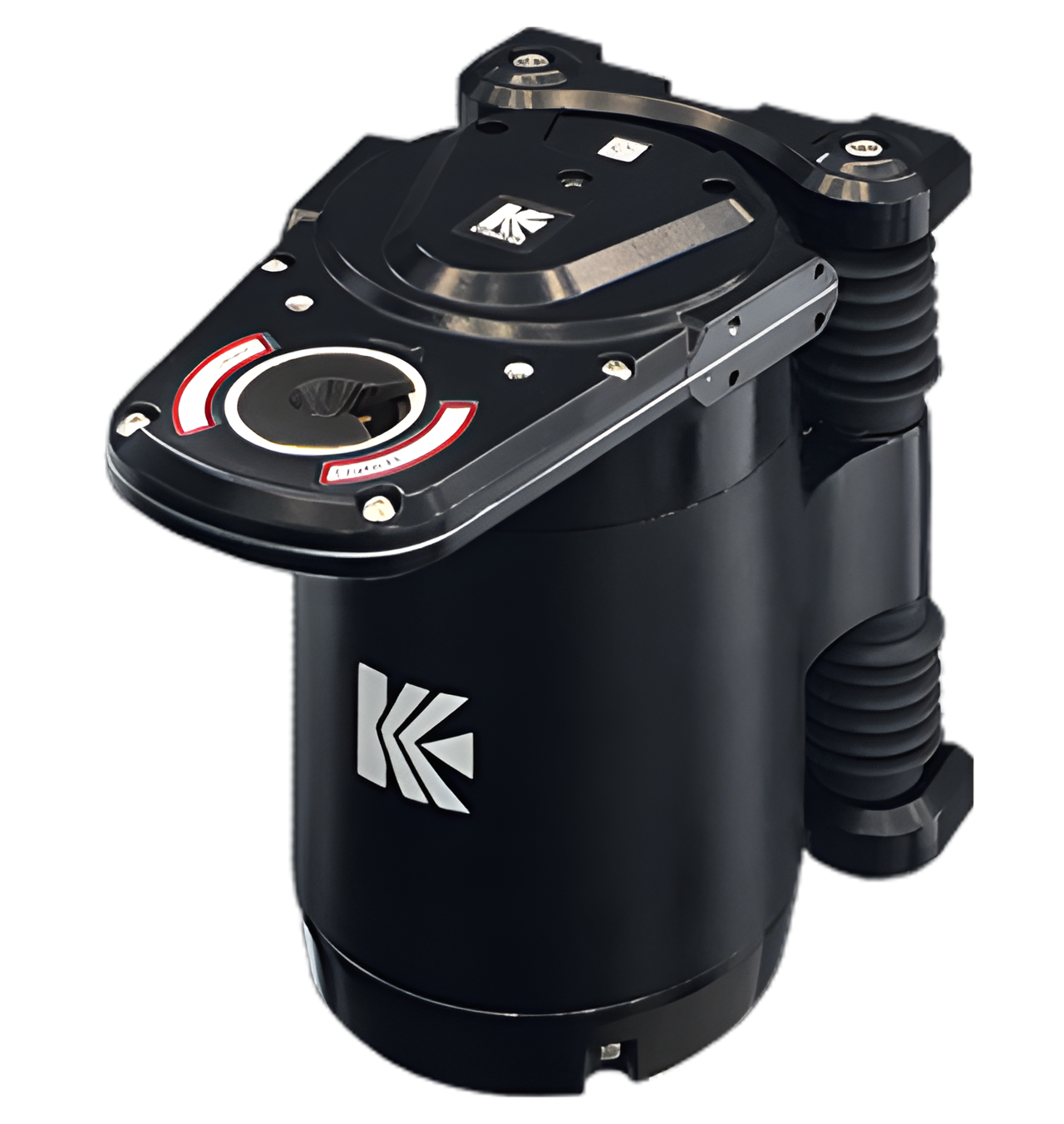

  • CDF

    CDF

    1. Rotation speed is approximately 60% higher than CDK-R

    2. High-speed rotation polishing produces high surface roughness (compared to CDK-R)

    3. Simultaneous dressing the upper and lower electrodes enables to reduce dressing time and be always alignment of the face after dress.
    4. Balancer unit is a standard requirement, enables to reduce the load on the welding gun and the dresser.
    5. Dresser with built-in rotation confirmation function by proximity sensor (Option).
    6. Splash proof construction for terminal box.
    7. High torque, high-speed rotation (using conditions:less than 1470N).
    8. KTW cutter dresses upper and lower electrode simultaneously ensuring tip face align ment and its life span is long.
    9. Correspond to international safety standard, CCC & CE.
    10. ※Please contact our sales for special requirement or other products.

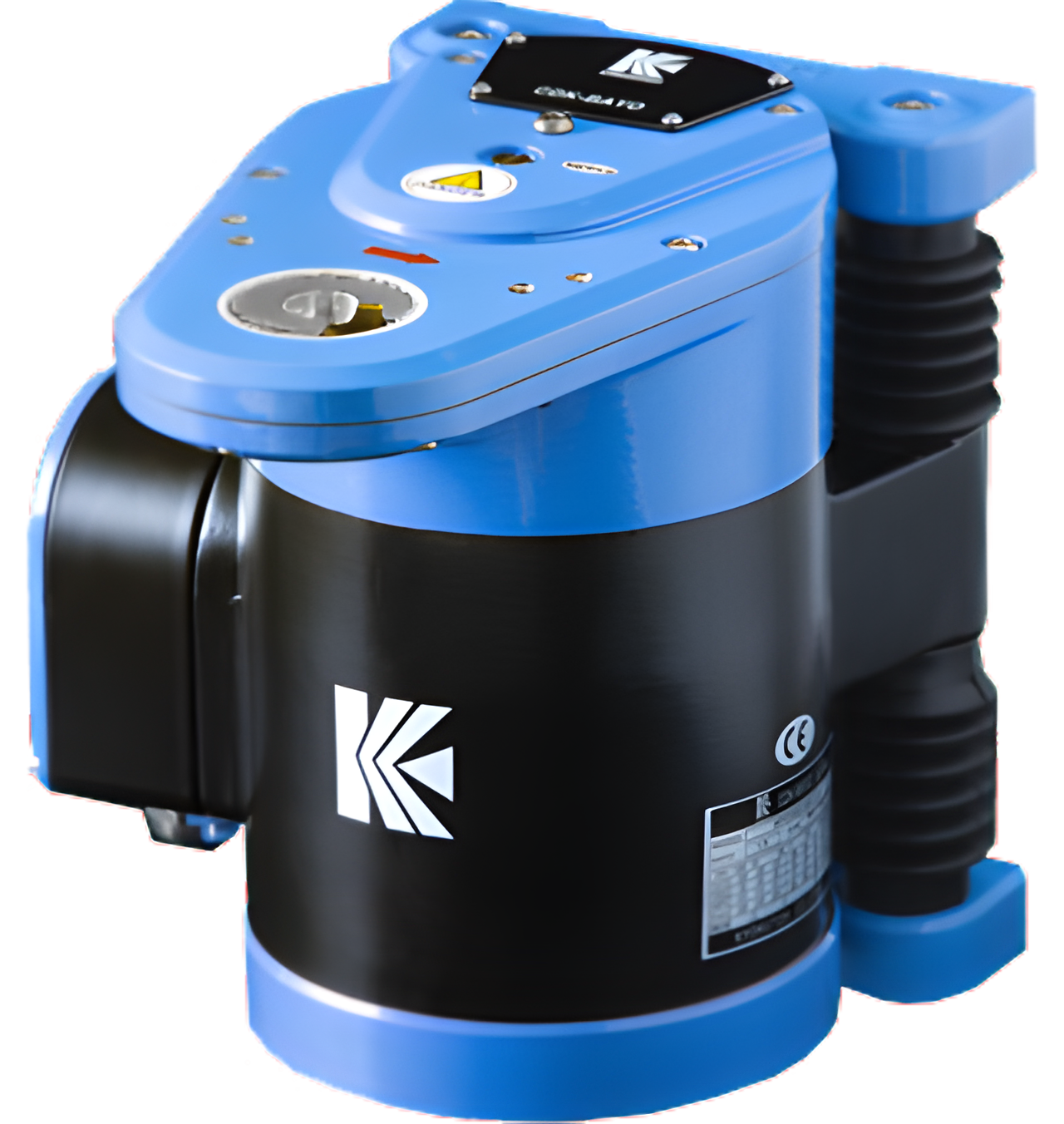

  • CDK-BAYO

    CDK-BAYO

    1. Adopt one touch holder which does not require any tool.
    2. Simultaneous dressing the upper and lower electrodes enables to reduce dressing time and be always alignment of the face after dress.
    3. Balancer unit is a standard requirement, enables to reduce the load on the welding gun and the dresser.
    4. Dresser with built-in rotation confirmation function by proximity sensor (Option).
    5. Splash proof construction for terminal box.
    6. High torque, high-speed rotation (1 sec, dressing).
    7. Cutter dress upper and lower electrode simultaneously ensuring tip face alignment and its life span is long.
    8. Correspond to international safety standard, CCC & CE.

    9. ※Please contact our sales for special requirement or other products.

  • CDK-DUAL

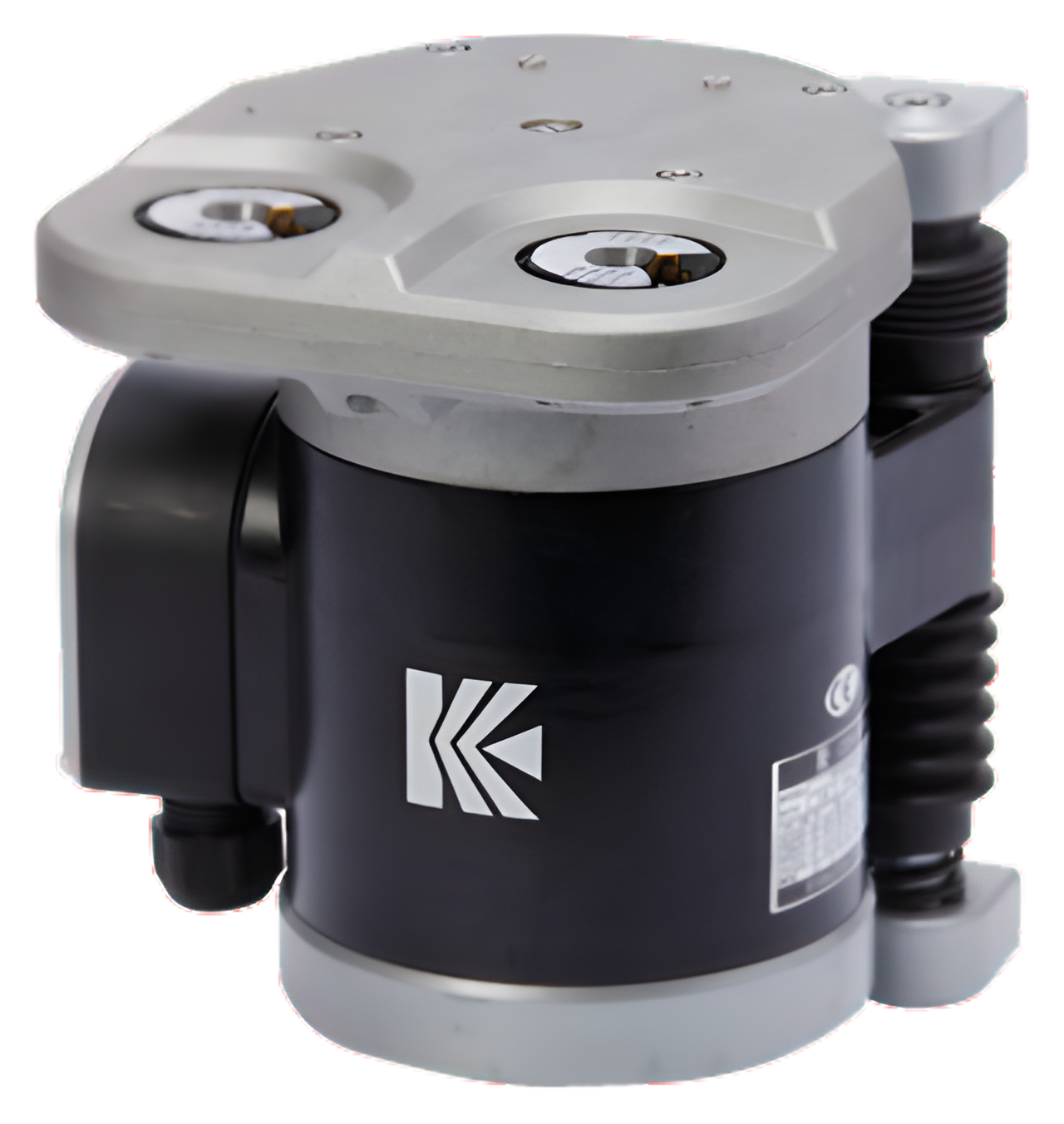

    CDK-DUAL

    1. Simultaneous dressing the upper and lower electrodes enables to reduce dressing time and be always alignment of the face after dress.
    2. Balancer unit is a standard requirement, enables to reduce the load on the welding gun and the dresser.
    3. Dresser with built-in rotation confirmation function by proximity sensor (Option).
    4. Splash proof construction for terminal box.
    5. High torque, high-speed rotation (1 sec. dressing).
    6. KTW cutter dresses upper and lower electrode simultaneously ensuring tip face align ment and its life span is long.
    7. Correspond to international safety standard, CCC & CE.

    ※Please contact our sales for special requirement or other products.

  • CDK-R

    CDK-R

    1. Simultaneous dressing the upper and lower electrodes enables to reduce dressing time and be always alignment of the face after dress.
    2. Balancer unit is a standard requirement, enables to reduce the load on the welding gun and the dresser.
    3. Dresser with built-in rotation confirmation function by proximity sensor (Option).
    4. Splash proof construction for terminal box.
    5. High torque, high-speed rotation (1 sec. dressing).
    6. KTW cutter dresses upper and lower electrode simultaneously ensuring tip face align ment and its life span is long.
    7. Correspond to international safety standard, CCC & CE.
    8. ※Please contact our sales for special requirement or other products.

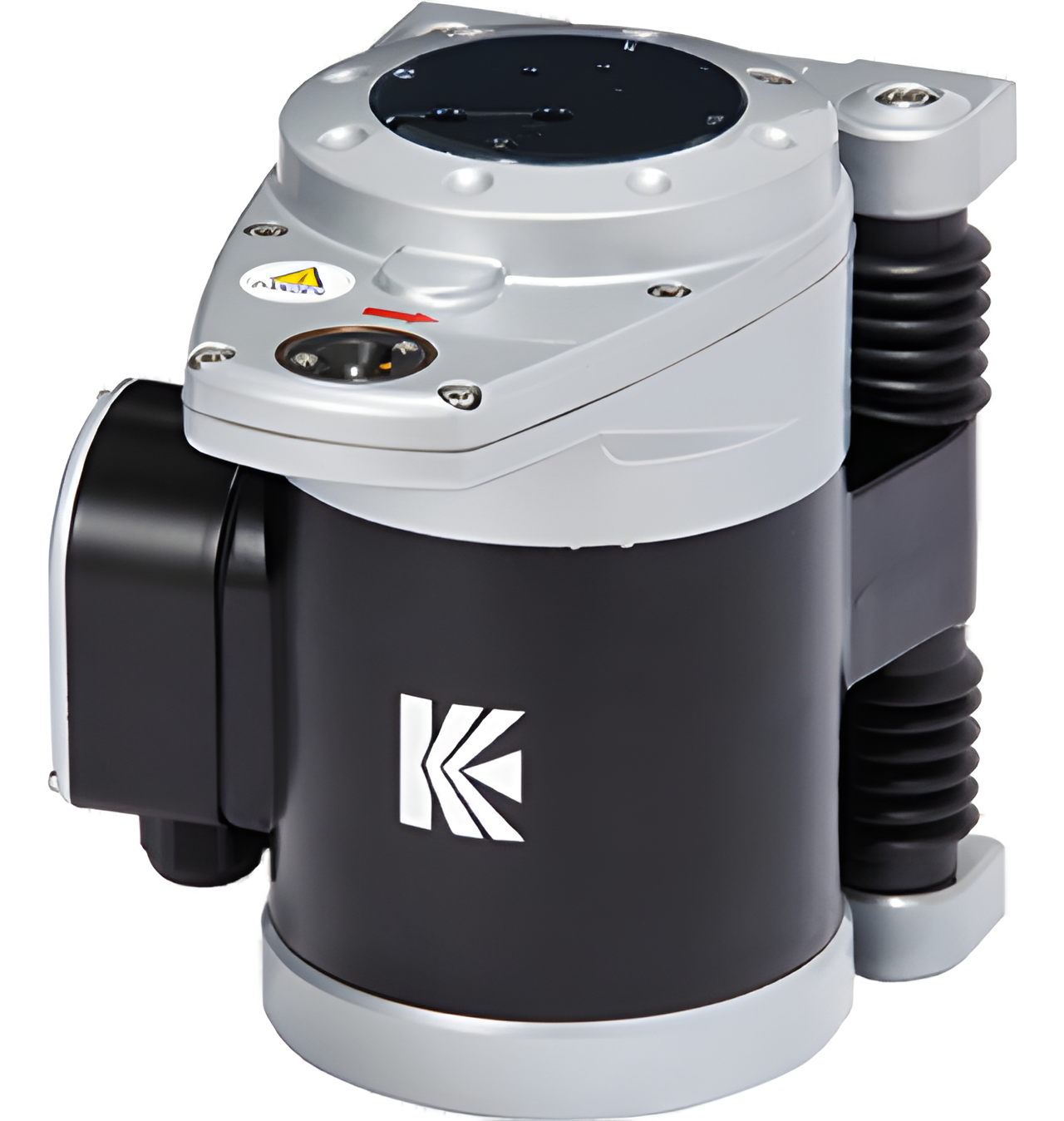

  • CDK-SG

    CDK-SG

    1. Correspond to gun with small throat depth (more than 27.0mm).
    2. Balancer unit is a standard requirement, enables to reduce the load on the welding gun and the dresser.
    3. Simultaneous dressing the upper and lower electrodes enables to reduce dressing time and be always alignment of the face after dress.
    4. Dresser with built-in rotation confirmation function by proximity sensor (Option).
    5. Splash proof construction for terminal box.
    6. High torque, high-speed rotation (1 sec. dressing).
    7. KTW cutter dresses upper and lower electrode simultaneously ensuring tip face align ment and its life span is long.
    8. Correspond to international safety standard, CCC & CE.

    9. ※Please contact our sales for special requirement or other products

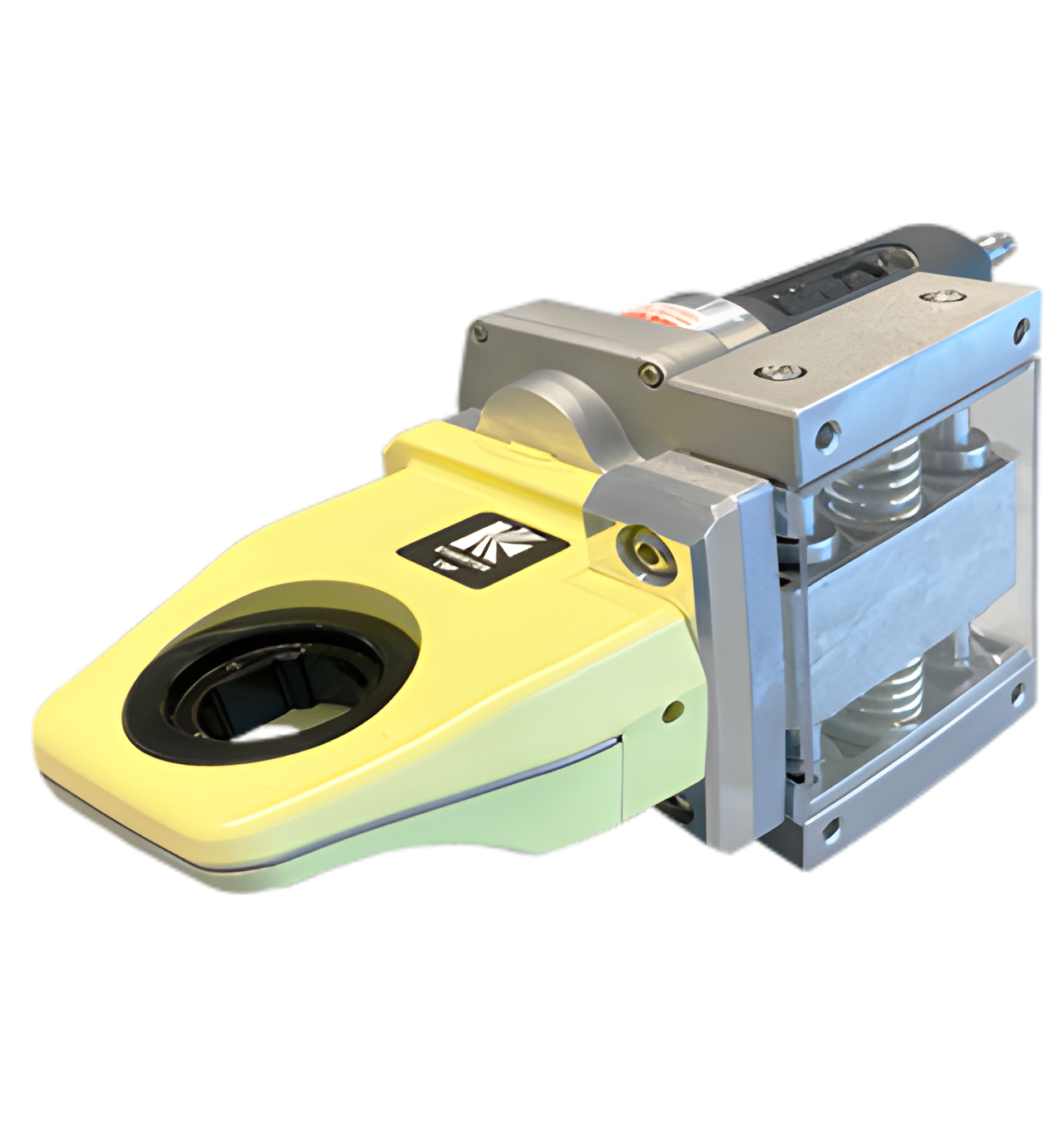

  • CDP

    CDP

    Compact lightweight design. Pneumatic air motor operation. Rotation Sensing provides output confirms operation(Option). Best design for end effector. Special desing for portable spot welding gun. KTW cutter dresses upper and lower electrode simultaneously ensuring long life span. Operation & Caution - Close weldign gun after motor rotation. Recommended gun pressure on cutter is 2960[N](300kgf). Gun press arbitary length on time(Approxymately 2-4seconds). Release welding gun while dresse is rotating.
  • DH-SVR2S

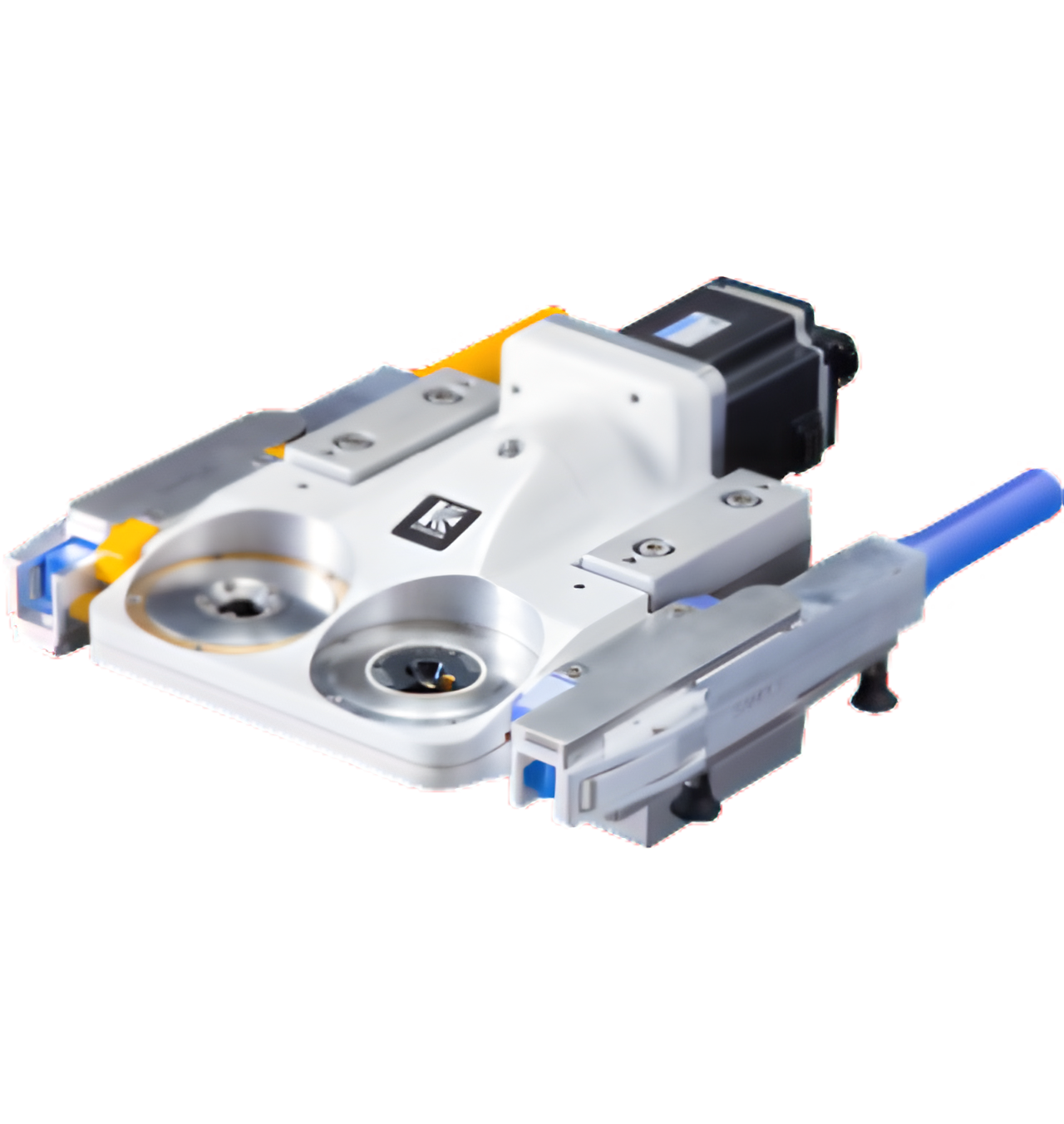

    DH-SVR2S

    1. Finishes tip dress and tip change with a single motor.
    2. An independent type with out using the robot axis is also available.
    3. Can be used with motors of almost every robot maker.
    4. Compact design of a combination of ATD & ATC.
    5. 【Compatible Tip】：Tips with external diameter of φ13,φ16,φ19,φ20.

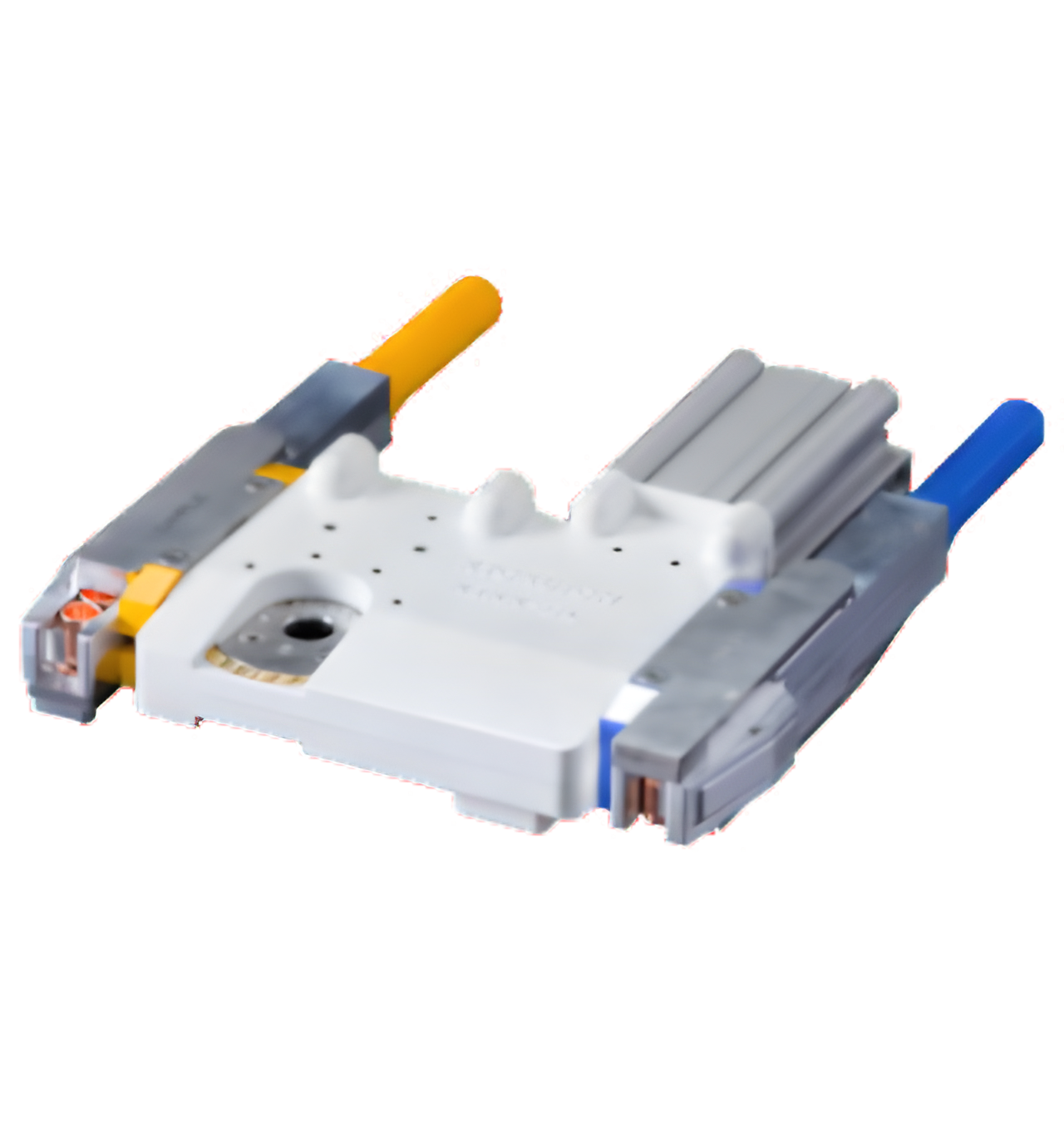

  • KIKK-EL**S

    KIKK-EL**S

    1. Easy teaching.
    2. Correspond to Φ13,Φ16,Φ19,Φ20 cap tips.
    3. One touch operation cartridge.
    4. Correspond to male and female tip.
    5. 14pcs of φ13 cap tips can be set in tip cartridge.
    6. 12pcs of φ16 cap tips can be set in tip cartridge.
    7. 10pcs of φ19 and φ20 cap tips can be set in tip cartridge.
    8. Detect timing of refilling cap tip by proximate sensor(Option).
    9. Detect of exchange error by limit switch(Option).

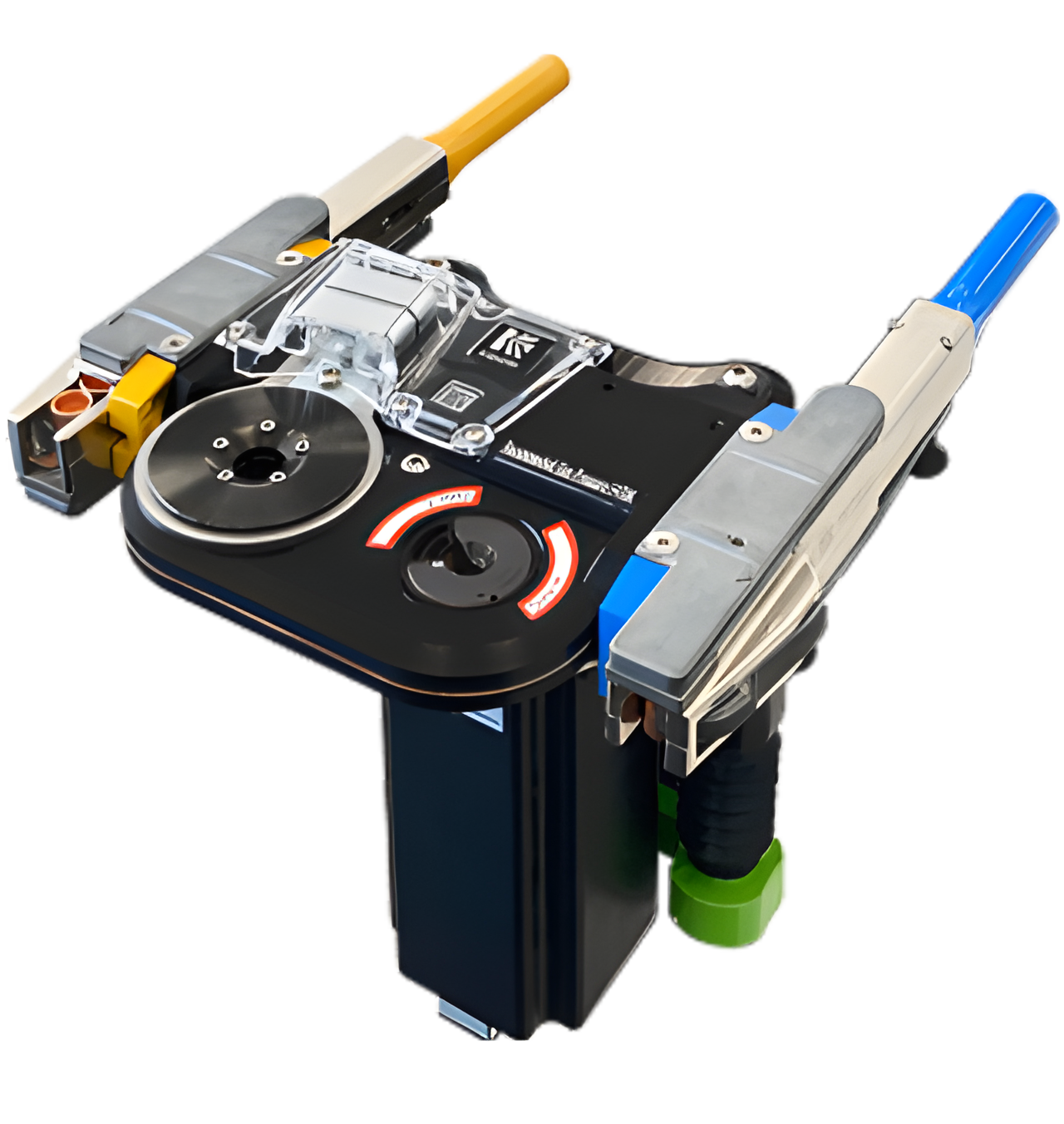

  • XCD

    XCD

    1. Available for both dressing / changing with single motor.
    2. Cylinder brake is attached on remove unit. Strong grab for tip removal.
    3. Powered by compact 3-phase AC motor which has high power, high speed.
    4. Compact design for both ATC / ATC by mounting the motor vertically.

    5. Highest removable force (tip turning force) among Kyokutoh products.

      ※Magazine is optional product.

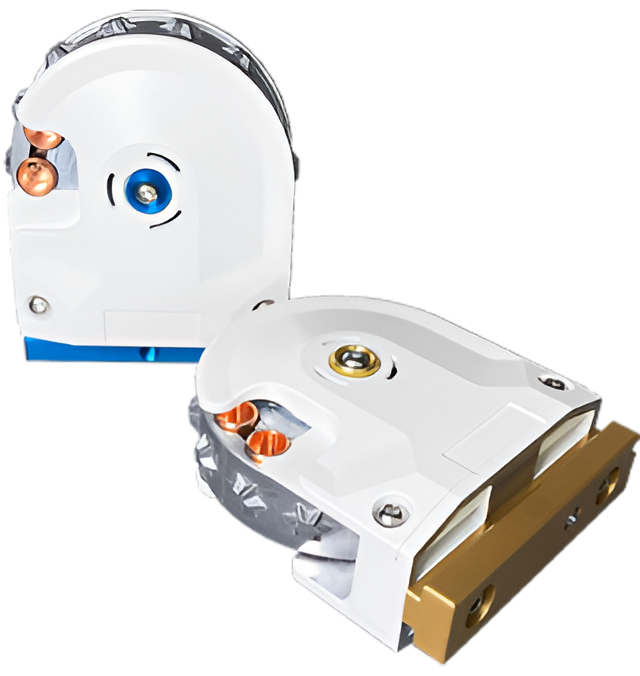

  • XR

    XR

    1. Available for various types of cap tip(such as tips with offset, across flat, etc.)

    2. Pokayoke T-slot prevents attaching the magazine on wrong side(upside-down, left-right)

    3. High durability O-ring which hold the cap tips

    4. Stable structure by holding the side of cap tips

    5. Detects remaining tips by using proximity sensor (option)

    6. Available for KIKK, DH-SVR2

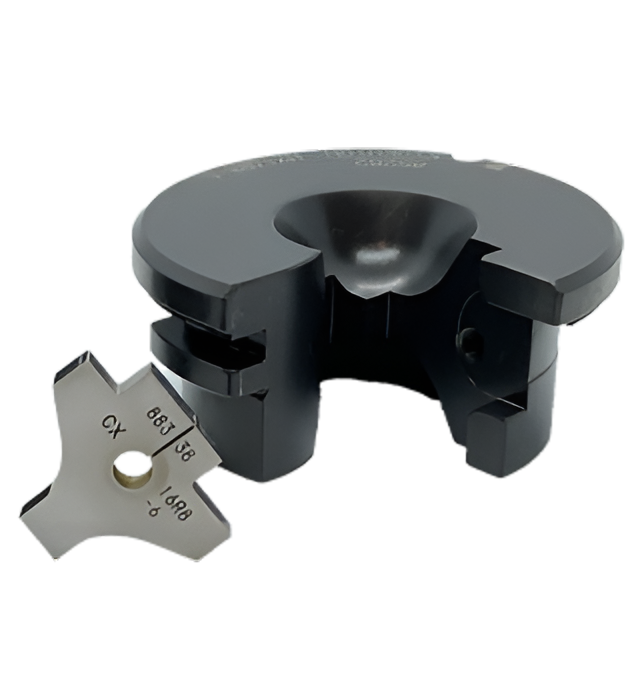

  • CX HX

    CX HX

    1. A highly durable, long-lasting cutter/holder for robots that are subject to high loads, such as hot stamping materials and high-tensile strength steel.

    2. HX... Kyokutoh original one-touch system.
      HXS... Bolt-on type. Compatible with KH holder.。
      HXB...EU-specification bayonet-type
      See below for compatibility.

    3. High surface roughness is produced in combination with a high-speed dresser.

      ※The surface roughness is too high to use the tip monitor.
      If you want to check tip face, please use FIXA2.

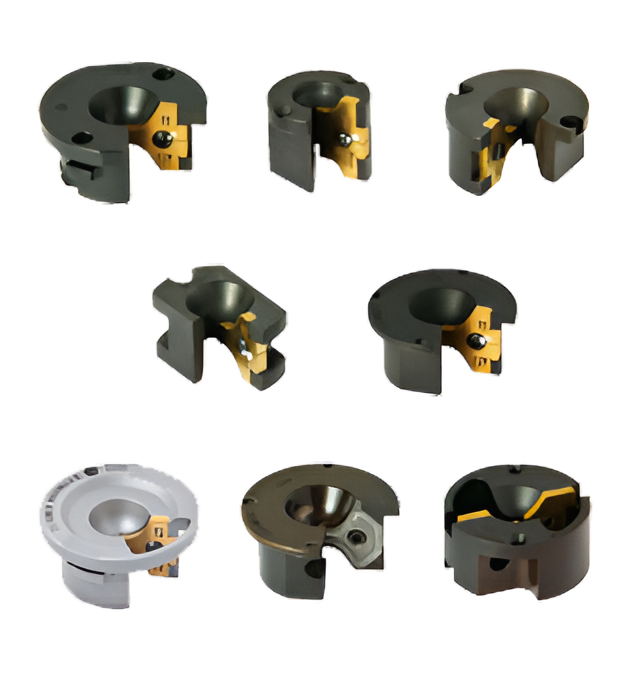

  • Cutter&Holder

    Cutter&Holder

    1. Correspond to majority of cap tip shapes.
    2. Correspond to tip dressers from more than 20 companies; used by over 100 customers.
    3. Cutter holder fit into various types of tip dresser from each maker.
    4. Contribute to reduce the cutter variety and inventory management.

    5. Support the long life span of cutter blade and reduce dressing time.

      ※Please prepare drawings of gun and tips, gun presser and dresser type for selecting suitable cutter and holder.

      ※Please contact our sales for special requirement or other products.

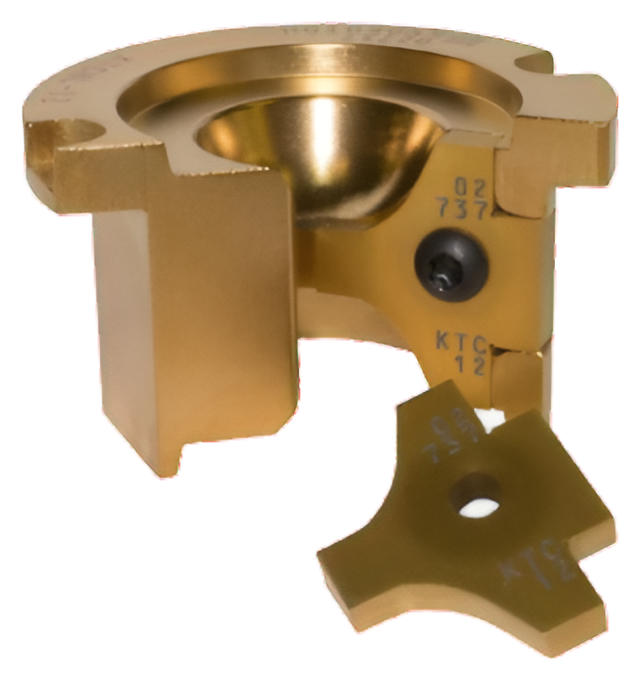

  • KC KH

    KC KH

    KC Cutter

    1. Exclusive Carbide for Tip Dresser.

    2. 2~3 times more life expectancy compared to the existing product.

      KH Holder

      1. Long life expectancy with a special surface treatment.

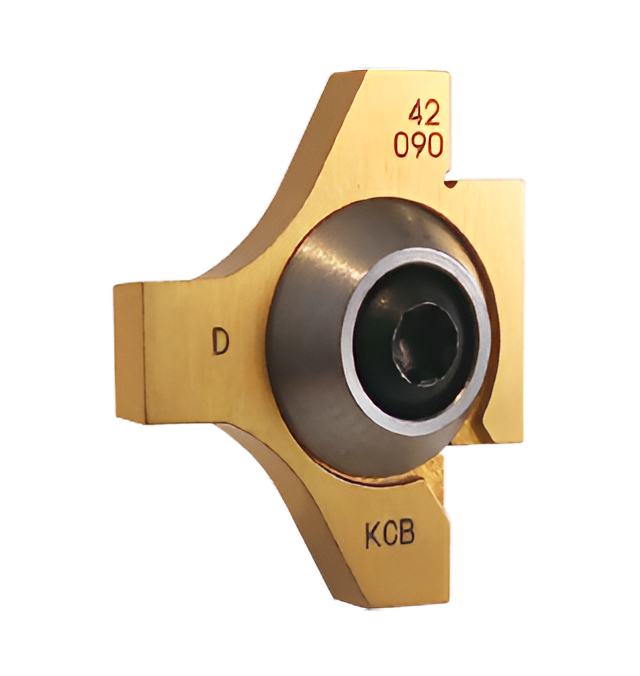

  • KCB

    KCB

    1. Exclusive carbide cutter for tip dresser
    2. Long life expectancy with a special surface treatment
    3. 2-3 times more life expectancy compared to the existing product
    4. Breaker is standard equipment
    5. Prevent dressed chips remaining on holder by breaking chips with Breaker
    6. KH holder is corresponded

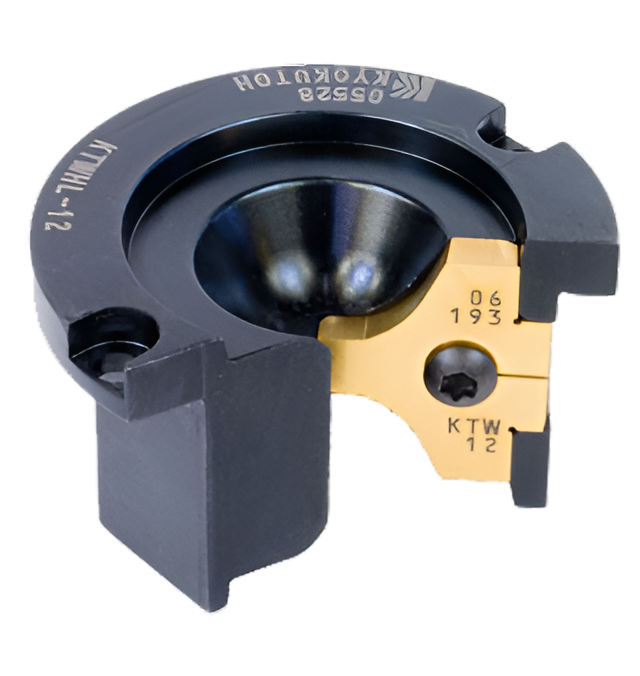

  • KTWHL

    KTWHL

    1. 1.5 times widen exhaust space of holder for dressed chips.
    2. Stable holder despite of decreased holder area.
    3. Eliminated screw head against interference.
    4. Correspond to majority of cap tip shapes.

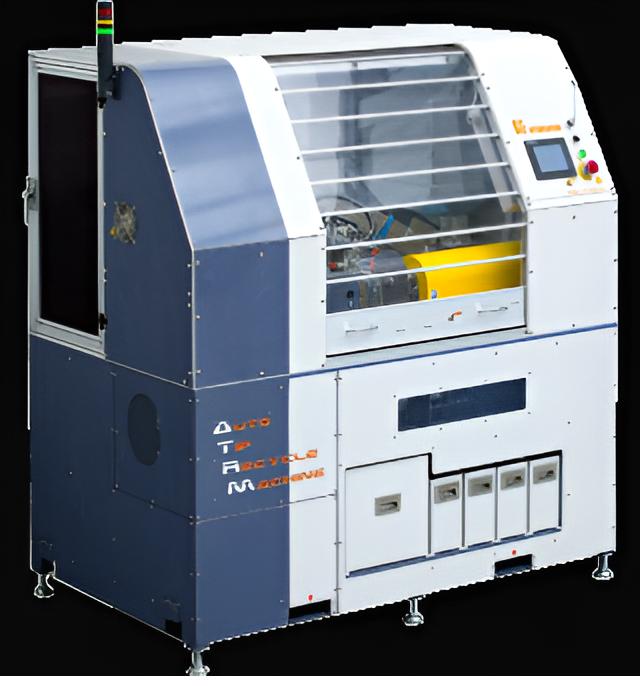

  • ATRM-008-00*

    ATRM-008-00*

    1. Adapted the servo motor. Programing of dress condition can be set in advance.
    2. Touch panel for the control board allows easy management of dressing amount, sorting length, dressing speed, etc.
    3. Improvement in safety and maintainability with open-and-close shutter.
    4. Measures the length, then dresses in a programmed shape.
    5. Replacing the shank can be done without removing the spindle.
    6. Automatic sorting into 3 levels of length,  Cap tips shorter than the set length can be set as NG(Option).
    7. Can accommodate up to 1200 pcs cap tips(Option : Normal storage capacity 400 pcs).

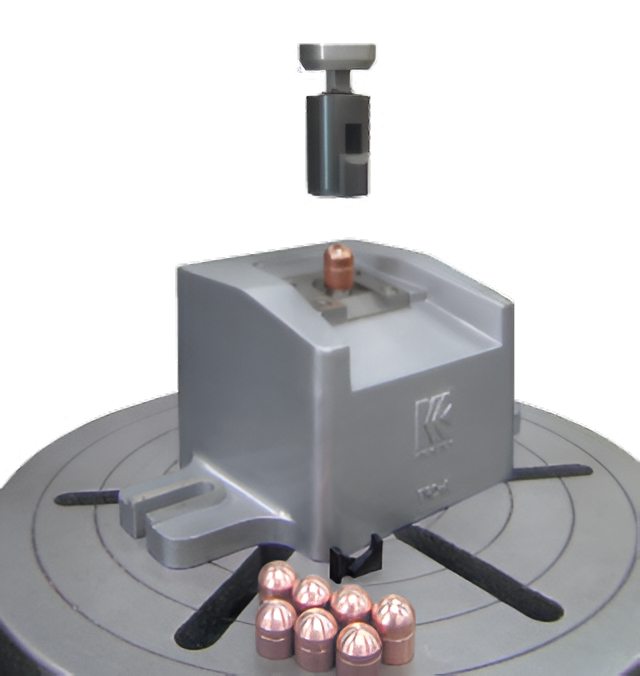

  • TRD-A-

    TRD-A-

    1. Promise the efficient work with centralized dress.
    2. Easy tip removal with air cylinder removal device.

    3. Cutter blade can be used with manual tip dresser.

      ※Please contact our sales for requirement or other products.

  • NEW ETD

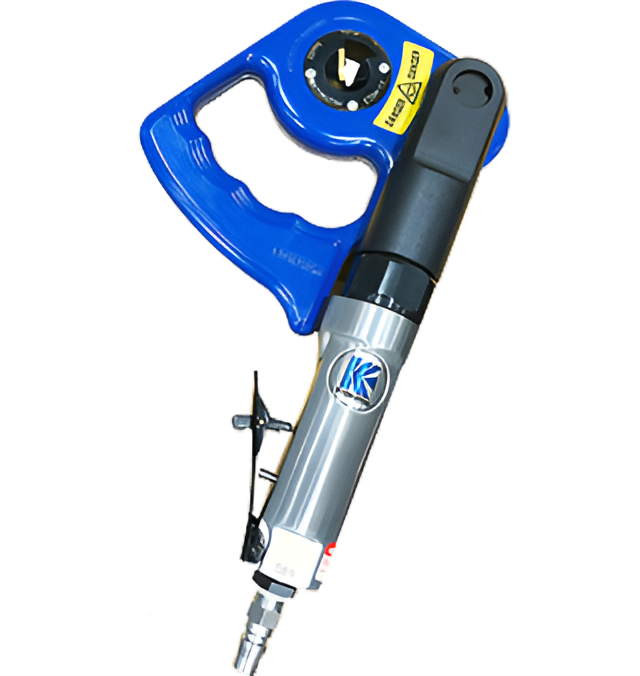

    NEW ETD

    1. Simultaneous dressing upper and lower cap tips.
    2. Cutter and holder can be replaced to correspond to specially shaped cap tips.
    3. Light weight! Low cost!
    4. High precision dressing is possible on upper and lower cap tips at the same time.

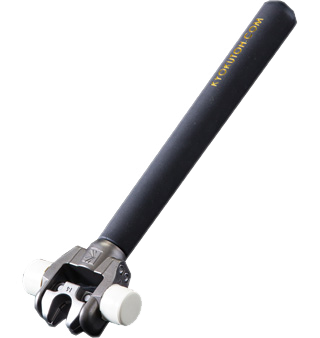

  • TRYZ

    TRYZ

    1. Special design allows for easy removal of cap tips.
    2. Remover does not damage the shank.
    3. Hammer and remover are one piece structure.
    4. Hammer and remover can be changed.
    5. Can be used on φ13 or φ16 by changing the head.
  • WPD

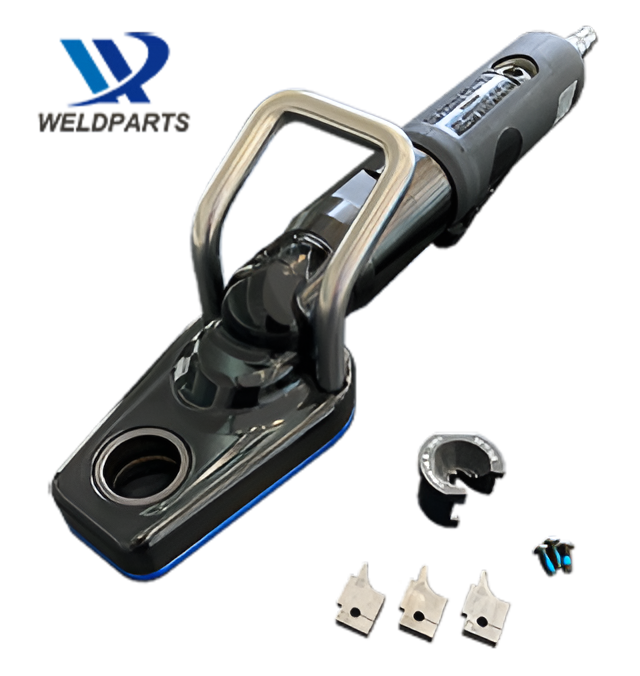

    WPD

    Please see the WELDPARTS's website for details.
    https://weldparts.co.jp/

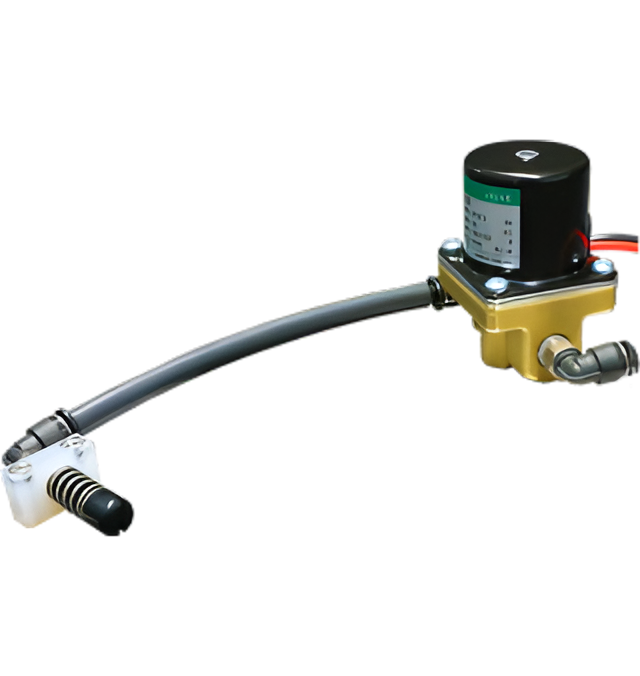

  • AB2

    AB2

    1. Remove chips powerfully by placing nozzle just above the holder
    2. Nozzle has internal spring so that holder replacement could be done without nozzle removal
    3. Blow air toward the chip discharge outlet of holder with special nozzle
  • CVC5-**2

    CVC5-**2

    1. Collect tips automatically after dressing.
    2. It achieves wide accessibility for a gun by a special structure.
    3. Special shape creates a strong vacuum.※1
    4. Collected chips can be recycled.
    5. Corresponds to our dresser for CDK-R, CDK-SG, CDK-BAYO, CDK-DUAL, CD-SVR.
    6. Air blower to prevent sticking of chips.(Option)※2
    7. Recommended solenoid vale : VP342-5G1-02A(SMC)

    8. CDK-R and stand are sold separately.

      ※1 This product does not guarantee perfect collection of chips.

      ※2 If use a external product air blower unit, the correct performance may not be exhibited.

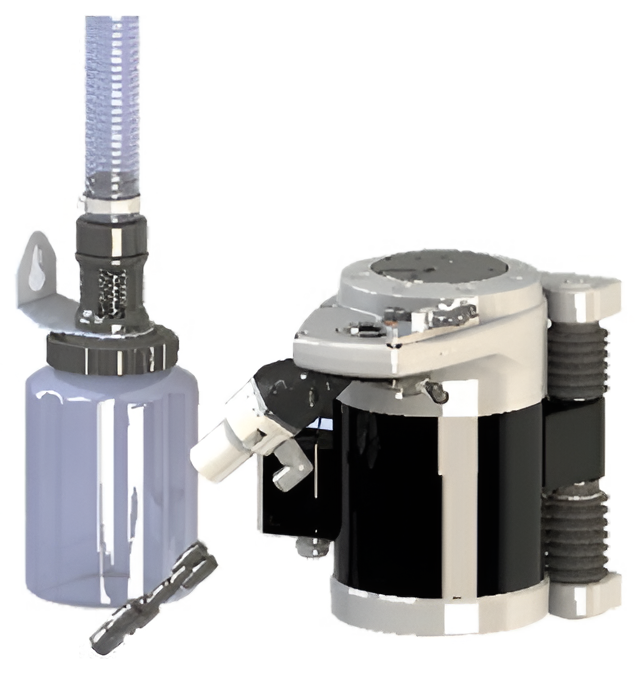

  • CVC5-**3

    CVC5-**3

    1. Collect tips automatically after dressing.
    2. It achieves wide accessibility for a gun by a special structure.
    3. Special shape creates a strong vacuum.※1
    4. Collected chips can be recycled.
    5. Corresponds to our dresser for CDK-R, CDK-SG, CDK-BAYO, CDK-DUAL, CD-SVR.
    6. Includes “Air Blow” as a standard, which prevents sticking of chips.※2
    7. Recommended solenoid vale : VP342-5G1-02A(SMC)

    8. Includes “Air Curtain” as a standard, which prevents chips from falling.

      ※1 This product does not guarantee perfect collection of chips.

      ※2 If use a external product air blower unit, the correct performance may not be exhibited.

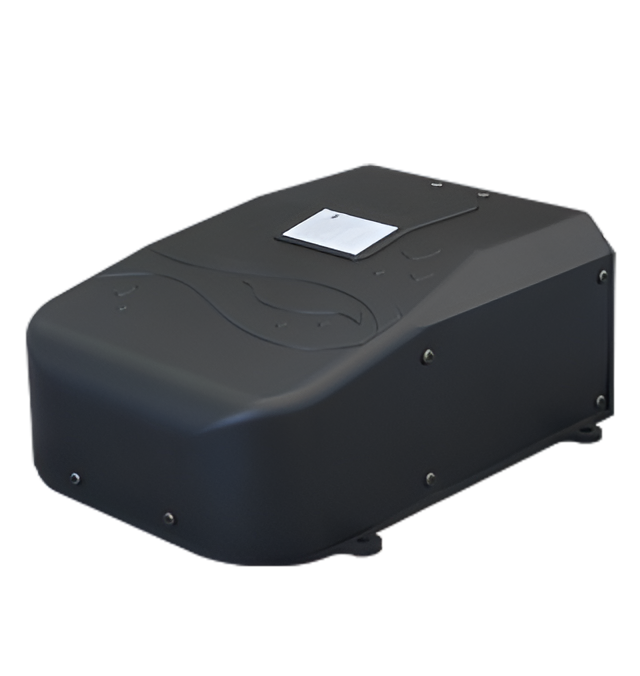

  • CWDS-01

    CWDS-01

    1. Reduce water leaking during tip change.

    2. Prevent from rusting on tip changer parts.

  • EVA-01

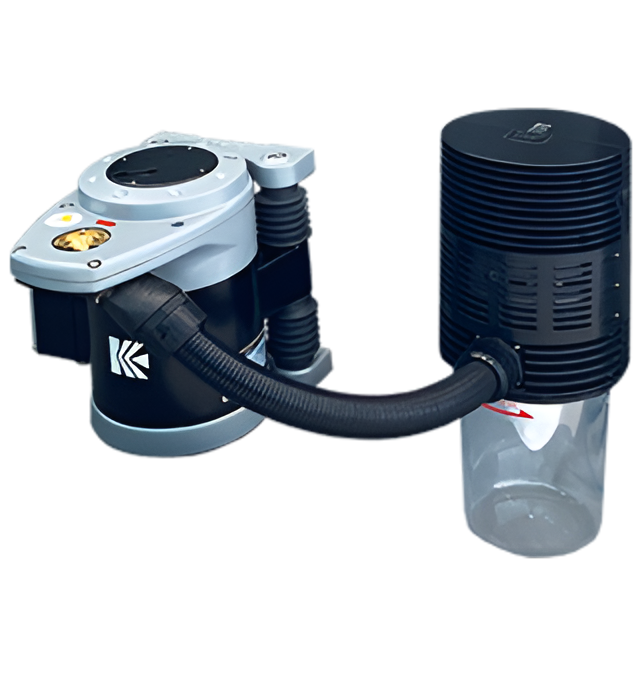

    EVA-01

    1. Chips generated during tip dress are automatically collected.
    2. Electric vacuum unit is adopted.
    3. Operates on single-phase 200 V. Contributes to airless facilities.
    4. Corresponding dressers: CDK-R, CDK-SG, CDK-BAYO, CDK-DUAL, CD-SVR
    5. The same collector shape as the CVC5 series is used, making it easy to replace the CVC5.
    6. One-touch hose is adopted

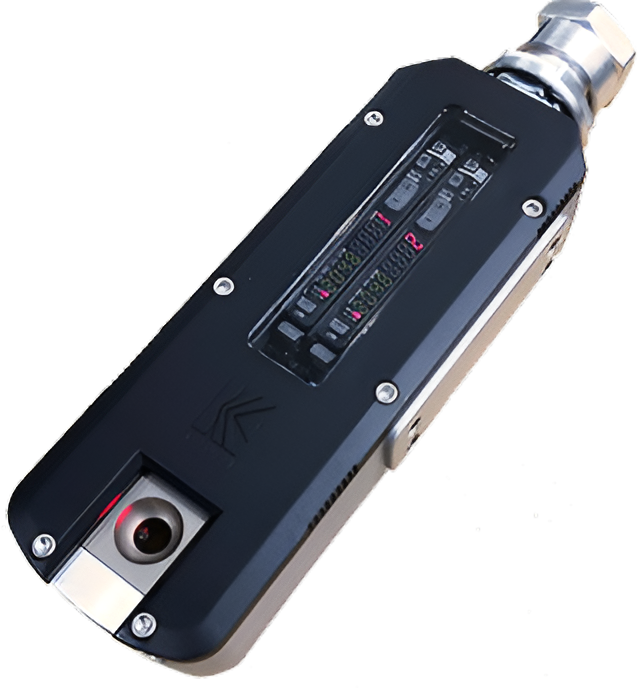

  • FIXA2

    FIXA2

    1. Able to avoid poor weld through regular detecting operation of tip face.
    2. The sensor reckon good tip face by proper reflecting light amount of cap tip.
    3. Please set the gun pressure up to 200kgf during detecting.

    4. Tip face is identified either OK or NG by the signal of Tip manager.

      ※Please contact us for the inquiry using special tip shapes.

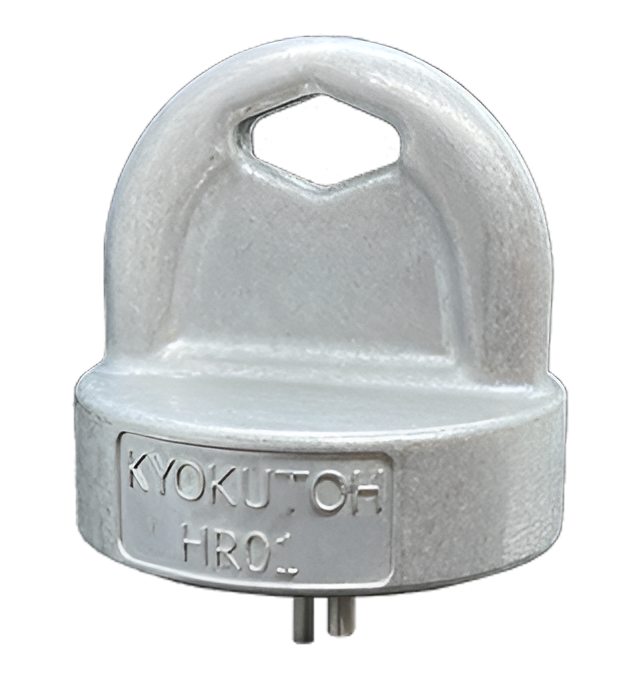

  • HR01

    HR01

    1. Built-in magnet prevents the holder from falling after removal.
    2. Compatible holders are KHX, KTWHX, KTWH-EUR, KTWHL-EUR.
    3. Quick remover for bayo-net type (one-touch type) holder.

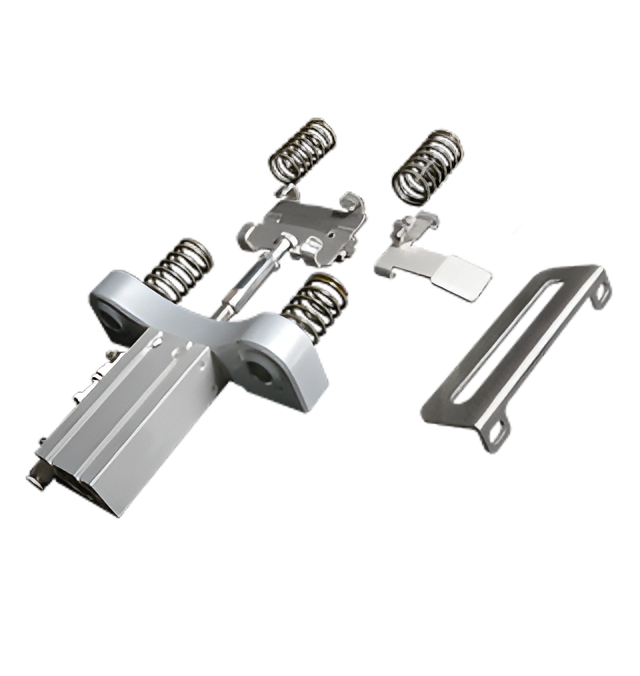

  • K-LIFTER

    K-LIFTER

    1. This optional item is for a swing dress unit to a pedestal gun.
    2. It lifts up a dresser to access to a gun and helps even dress amount for upper and lower cap tip.
    3. It lifts up a dresser to access to a gun and is able to dress shorten cap tip because it won't decrease travel amount of compliance unit.

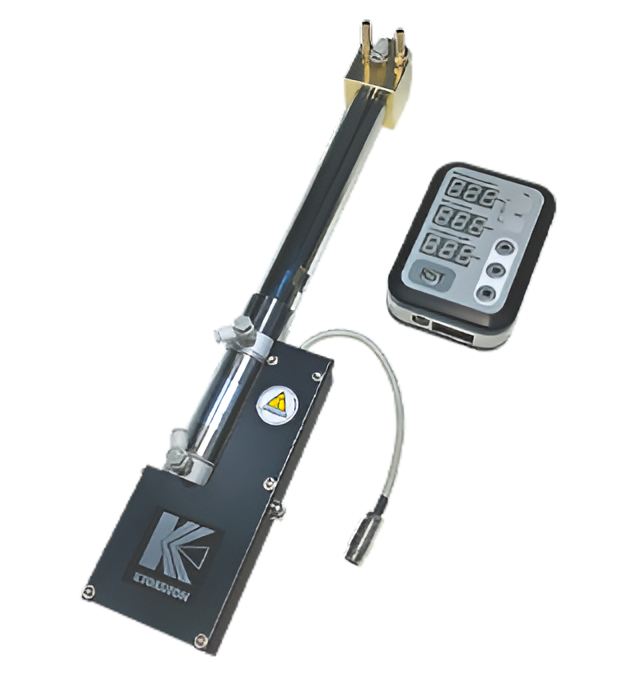

  • NMJ-006S

    NMJ-006S

    1. Prevents nut welding failures

    2. Detect nut position failures, size failures, overturns, and other failures which causes poor welding.

    3. Transformable to Bolt Manager by changing the electrode

    4. Detect by using optional proximity sensor

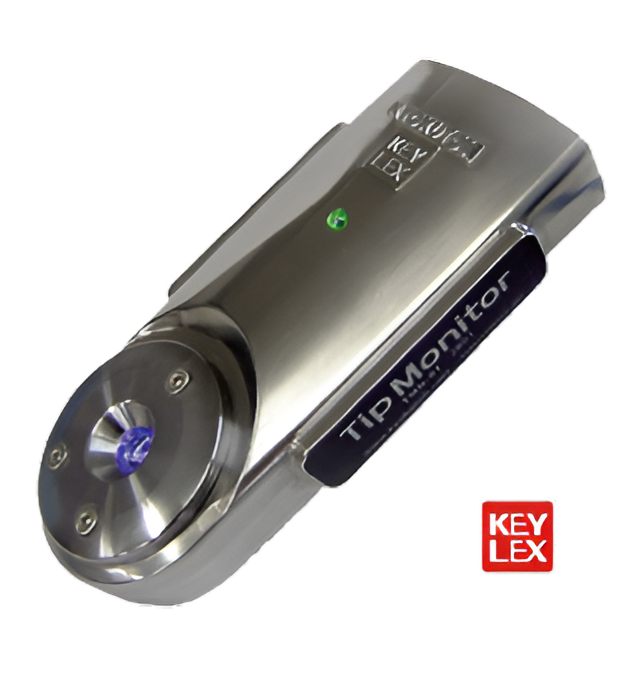

  • TMN-01

    TMN-01

    1. Automatic inspection of cap tip with camera after dressing.
    2. Picture management by camera photography.
    3. Cap tip images are analyzed and distinguished by photo data.
    4. Analyzed data enable traceability.
    5. Compact design for narrow manufacturing line.
    6. One-touch attachment bracket（Option）.
    7. Can connect 15 cameras (when using CC-link or DeviceNet) or 50 cameras (when using Ethernet) to each computer.
    8. DeviceNet, CC-link, Ethernet and Ethernet/IP can be used for control.

    9. Latest Version・・・V4.13.06

      【Accessories】 Software

      ※Neccessary equipment

      Computer、POE hub、I/F board for Device network/CC link、LAN cable

      ※There are some conditions for the supported PLC models.
      Please contact our sales department for details.

  • TT-ATC

    TT-ATC

    1. Teaching guide for KIKK-EL series.
    2. It makes teaching process easier and more accurate.
    3. It secures precise performance of KIKK remove unit.
  • CTC-001

    CTC-001

    Please see the Tipman's website for details
    www.tipman.jp/en/

  • CTR-001

    CTR-001

    Please see the Tipman's website for details.
    www.tipman.jp/en/

  • NC-001

    NC-001

    Please see the Tipman's website for details.
    www.tipman.jp/en/

  • NCAM-04

    NCAM-04

    Please see the Tipman's website for details.
    www.tipman.jp/en/

  • NCOP-SP03

    NCOP-SP03

    Please see the Tipman's website for details.

    www.tipman.jp.jp/en/

  • NCOP-WC03D

    NCOP-WC03D

    Please see the Tipman's website for details.
    www.tipman.jp/en/

  • NS-01

    NS-01



  • TS-01

    TS-01

    Please see the Tipman's website for details.
    www.tipman.jp/en/

View More Products

Our Company

  • Our Company

    Our Company

    Company information

    Explore
  • Oversea Group Companies

    Oversea Group Companies

  • Domestic Bases

    Domestic Bases

  • History

    History

  • Contact Us

    Contact Us
